4G MTG Upgrade

4G MTG LTE

New Modular Telemetics Gateway 4G Upgrade
Make Your JDLink™ Connection Even Better

Now is the time to upgrade your 2G/3G mobile communications and processing device to the new MTG 4G LTE. It integrates 4G LTE, global positioning system (GPS), wireless, Bluetooth® wireless, and on-board machine communications via controller area network (CAN), and Ethernet. Only $200 to upgrade!


New 4G MTG Upgrade

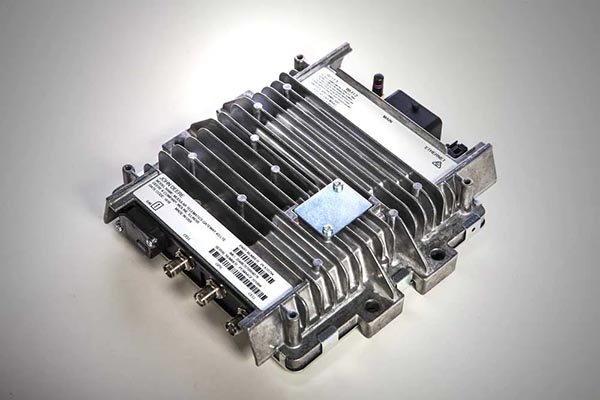

MTG 4G LTE is the fourth-generation connectivity hardware from John Deere. MTG 4G LTE is a mobile communications and processing device designed and manufactured by John Deere. It integrates 4G LTE, global positioning system (GPS), wireless, Bluetooth® wireless, and onboard machine communications via controller area network (CAN), and Ethernet.


The MTG 4G LTE is ideally suited for advanced telematics applications such as machine health monitoring, advanced logistics, machine control, and remote diagnostics. It is environmentally sealed and rigorously tested to ensure performance in the most demanding environmental conditions.


Product enhancements beyond MTG 3G includes:
4G LTE – in addition to faster data rates, this enables MTG 4G LTE to avoid hardware becoming obsolete well into the future.
Wireless – enables MTG 4G LTE connect to a user-provided hotspot device for data transfer in Global System for Mobiles (GSM) limited coverage areas.
Bluetooth – facilitates connection of MTG 4G LTE to a portable device.
Increased processing, memory, and storage capacity – enables the ability to handle additional vehicle measurements and new applications.


MTG 4G LTE supported technology standards and frequencies:
Quad band LTE: 700/850/AWS (1700/2100)/1900 MHz
FDD-band (17,5,4,2)
Tri-band UMTS (WCDMA): 850/AWS (1700/2100)/1900 MHz
FDD-band (5,4,2)
Quad-band GSM/GPRS/EDGE: 850/900/1800/1900 MHz

4G MTG

4G MTG

Highlights

Quickly and easily upgrade older machines with the latest hardware solution. Avoid going obsolete in the future with this low-cost kit that uses existing parts for mounting previous generation antennas.

  • Faster data transfer
  • Wireless hotspot connectivity
  • Bluetooth
  • Increased memory and storage

Learn more about JDLink™  Connectivity here
