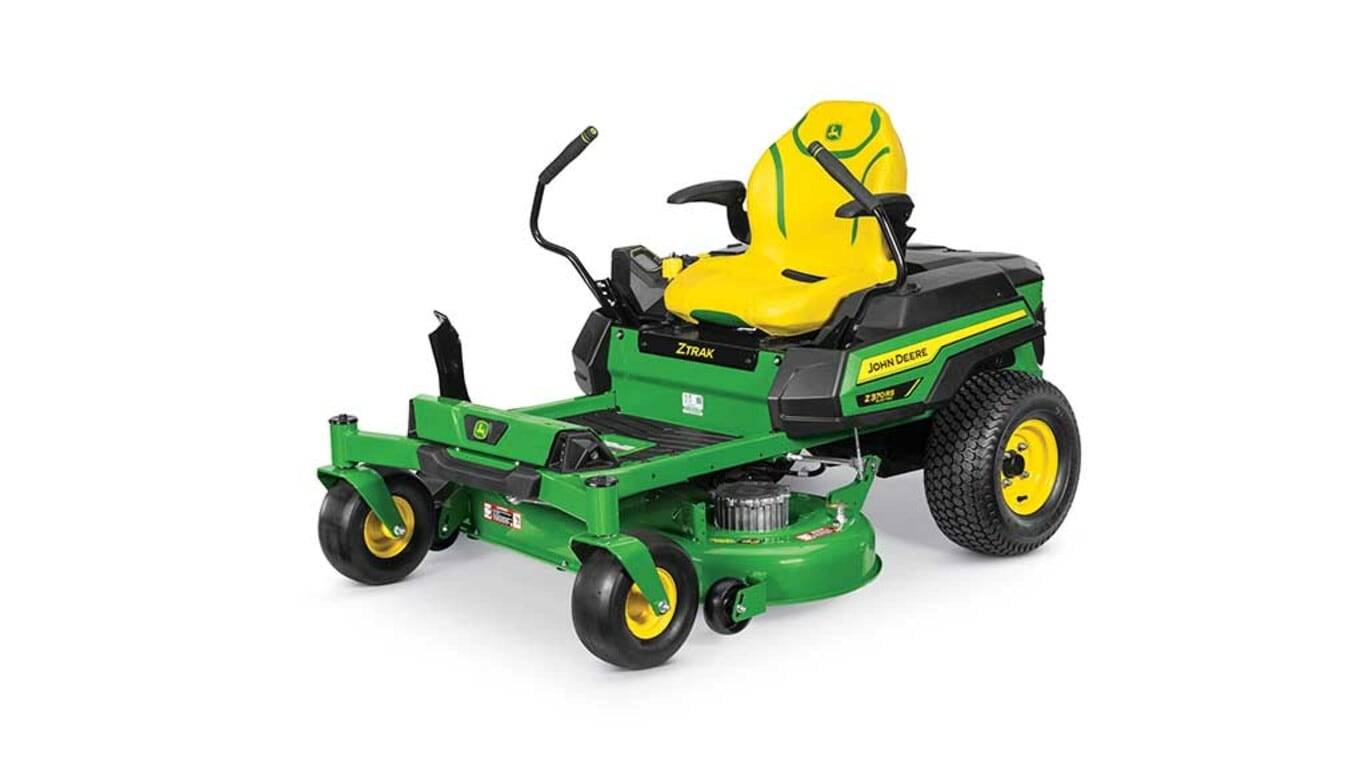

New Z370RS Electric ZTrak™ Mower

Specifications

Battery	One 58 V lithium-ion, 3.56 kilowatt-hour maximum (3.20 kilowatt-hour nominal), sealed and meets IP66 rating
Charger	On board, 700 Watts, 120 V input
Engine power
Engine model number
Forward speed	0-7 mph 0-11.3 km/h
Front caster tires	11x6-5
Drive tires	42A: 18x8.5-8 48A: 20x10-8
Seat back height	High back with armrests, 20 in. 51 cm
Width of cut	Accel Deep™ mower deck, 42 in. 107 cm Accel Deep™ mower deck, 48 in. 122 cm
Mulching system	Optional MulchControl™ attachment
Warranty	3 year or 200 hour bumper-to bumper; 5 year or 200 hour battery* (*Terms limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Power
Model number
Displacement
Cylinders
Lubrication
Type
Battery
Choke/speed control
Cooling method
Fuel tank capacity
Fuel gauge

Battery	One 58 V lithium-ion, 3.56 kilowatt-hour maximum (3.20 kilowatt-hour nominal), sealed and meets IP66 rating
Charger	On board, 700 Watts, 120 V input
Dual hydros
Hydraulic pumps
Wheel motors
Transmission	Dual electric motor with 1-in (2.5-cm) axles

Forward speed	0-7 mph 0-11.3 km/h
Reverse speed	0-3.5 mph 0-5.6 km/h
Speed and direction control	Twin levers
Control adjustment	3 height, 11 positions

Frame	Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Primer/paint	E-coat/powder
Front caster tires	11x6-5
Front caster bearings	Sealed ball bearings
Drive tires	42A: 18x8.5-8 48A: 20x10-8
Hour meter	Yes
Service interval decal	Yes
Storage compartment	Standard covered
Cup holder	Yes
Maximum towing capacity	250 lb 113 kg

Seat back height	High back with armrests, 20 in. 51 cm
Fore-aft adjustment	2.9 in. 7 cm
Seat suspension	Two springs

Type	Foot lift
Mower cut height	1.25-4.5 in. 3-11 cm
Cut height increments	0.25 in. 0.64 cm
Preset cut height	Yes

Width of cut	Accel Deep™ mower deck, 42 in. 107 cm Accel Deep™ mower deck, 48 in. 122 cm
Type	Side discharge
Mower deck material	42A: 12 gauge 0.105 in. 2.7 mm 48A: 10 gauge 0.135 in. 3.4 mm
Mower drive system	Electric motors

Type
Drive

Wheelbase	49.4 in. 1255 mm
Overall length	75.4 in. 1915 mm
Width without mower	43.3 in. 1100 mm
Width with mower	42A: 50.4 in. 1280 mm 48A: 62.6 in. 1590 mm
Width with mower (deflector raised for storage)	42A: 46.5 in. 1180 mm 48A: 52.8 in. 1340 mm
Height	43.3 in. 1100 mm
Weight	42A: 490 lb 222 kg 48A: 540 lb 245 kg

Rollover protective structure (ROPS)	No
Slope operating limit	13 degrees; 10 degrees with Material Collection System
Operator presence system	Yes
Park brake interlock	Yes
Operator video	Yes, online

Note 1	Mow 2 acres (42-in. [107-cm] mower deck) or 1.8 acres (48-in. [122-cm] mower deck) on a charge with confidence, 3.56 kilowatt-hour maximum (3.20 kilowatt-hour nominal) battery has up to 40 percent more capacity than competitor’s batteries
Note 2	Smart charger is built into the mower, charge anywhere with a standard 120-volt outlet and grounded extension cord
Note 3	Sealed battery meets IP66 rating, allowing you to wash the mower with a water hose
Warranty	3 year or 200 hour bumper-to bumper; 5 year or 200 hour battery* (*Terms limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Mulching system	Optional MulchControl™ attachment
Rubber floor mat	Standard
Sun shade
Mounted sprayer
Protective cover	Optional
Light kit	Standard
Material collection system	42A: Two-bag cut-and-throw MCS, 6.5 bu 229 L 48A: No material collection system

Manufacturing location	Greeneville, Tennessee, USA
Date collected	2-Oct-2023
