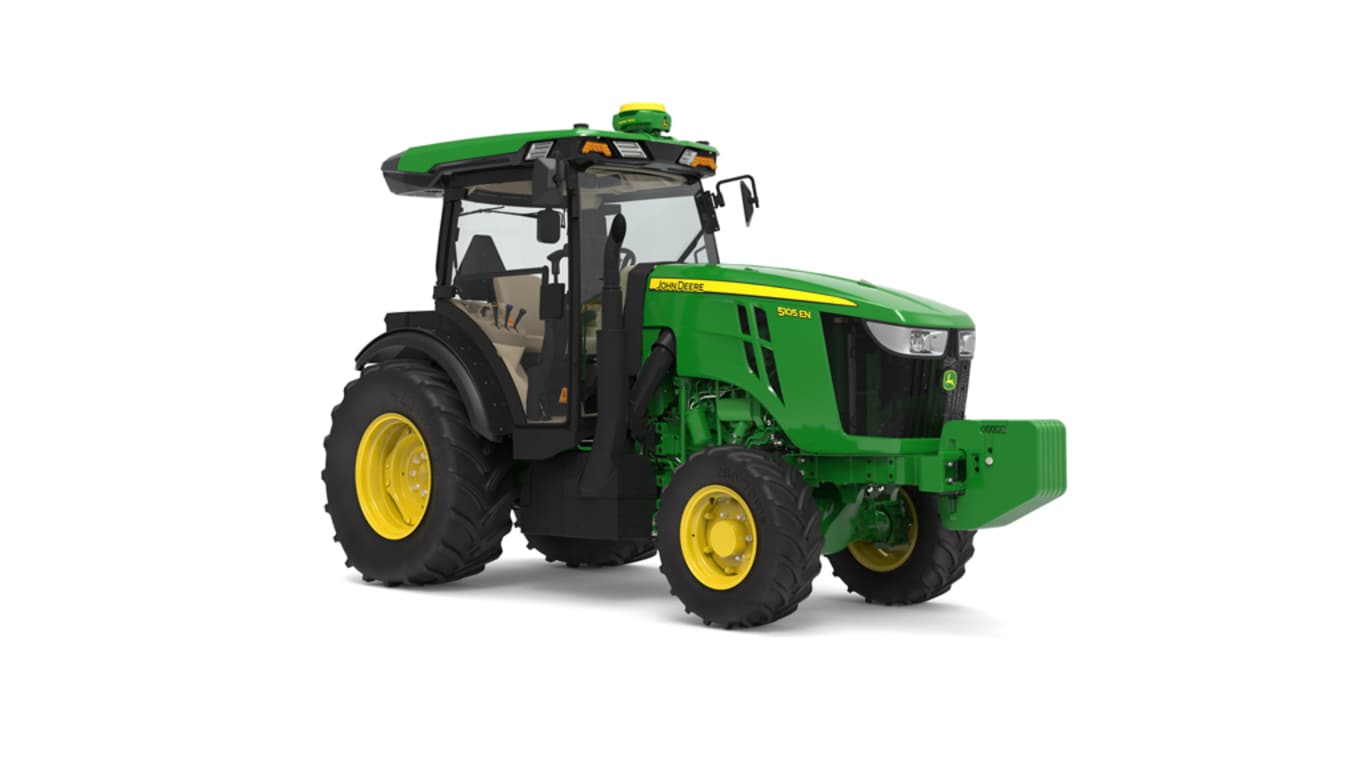

New 5105EN Tractor

Specifications

Compare >>> Select up to 2 models to compare specifications

John Deere5105EN Tractor

Add Model --Please Select-- 5050E (Model year 2023) 5060E (Model year 2023) 5067E (Model year 2023) 5075GL (Model year 2023) 5075GN (Model year 2023) 5075GV (Model year 2023) 5075M (Model year 2023) 5090E (Model year 2023) 5090EL (Model year 2023) 5090GN (Model year 2023) 5090GV (Model year 2023) 5095M (Model year 2023) 5100E (Model year 2023) 5100GN (Model year 2023) 5105M (Model year 2023) 5105MH (Model year 2023) 5105ML (Model year 2023) 5120M (Model year 2023) 5120ML (Model year 2023) 5130M (Model year 2023) 5130ML (Model year 2023)

Add Model --Please Select-- 5050E (Model year 2023) 5060E (Model year 2023) 5067E (Model year 2023) 5075GL (Model year 2023) 5075GN (Model year 2023) 5075GV (Model year 2023) 5075M (Model year 2023) 5090E (Model year 2023) 5090EL (Model year 2023) 5090GN (Model year 2023) 5090GV (Model year 2023) 5095M (Model year 2023) 5100E (Model year 2023) 5100GN (Model year 2023) 5105M (Model year 2023) 5105MH (Model year 2023) 5105ML (Model year 2023) 5120M (Model year 2023) 5120ML (Model year 2023) 5130M (Model year 2023) 5130ML (Model year 2023)

Engine description	John Deere PowerTech™ 3029 EWX
Engine displacement	3 cylinders: 2.9 L 179 cu in.
Rated engine power	At 2100 rpm: 55 kW 75 hp
Maximum engine power	55 kW 75 hp
Rated PTO power (hp SAE)	At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp)
Maximum PTO power
Transmission type	Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ 24F/12R
Hydraulic pump rated output	68.8 L/min 18.2 gpm
Rear hitch category (SAE designation)	Category 2N; convertible to 2 & 1
Base machine weight
Hydraulic Pumps Nominal Flow
Maximum PTO power at rated engine speed with intellegent power management (IPM)
Maximum engine power (ECE-R120)
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated Engine Power (SAE J1995)
Rated PTO Power
Rated engine power (ECE-R120)
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
Rear Hitch Category (ISO 730-2009)

Description	John Deere PowerTech™ 3029 EWX
Engine type	3029HPY110
Engine family	NJDXL02.9339
Rated speed	2100 rpm
Aspiration	Turbocharged
Cylinders liners	Wet sleeved
Emission level	Final Tier 4
After treatment type	DOC/DPF
Displacement	3 cylinders: 2.9 L 179 cu in.

Rated power	At 2100 rpm: 55 kW 75 hp
Rated PTO power (hp SAE)	At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp)
Maximum PTO power
Intelligent Power Management (IPM)
Power boost	0 percent
Maximum engine power	55 kW 73.7 hp
Engine peak torque	At 1500 rpm: 304 Nm 224 lb-ft
Drawbar power
PTO torque rise	21 percent
Fuel injection system and control
Air cleaner type
Maximum Engine Torque
Maximum PTO power at rated engine speed with intellegent power management (IPM)
Maximum engine torque (without power boost at 1.600 engine rpm)
Maximum engine power (ECE-R120)
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Maximum engine power with intelligent power management (IPM)
Rated PTO Power
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)
Rated power (ECE-R120)
Torque Reserve

Type	Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ 24F/12R
Reverser	Yes
Clutch; wet/dry	Wet
Creeper	Optional
Creeper Transmission (Reducer)
Integrated Electric Power Generation

Type	Open center
Pump rated output	68.8 L/min 18.2 gpm
Available flow at a single rear SCV	43.4 L/min 11.5 gpm
Available flow at front SCVs
Number of rear selective control valves (SCVs)	Standard: Two Optional: Three
Number of mid selective control valves (SCVs)	Standard: Zero Optional: Up to Two
Number of front selective control valves (SCVs)
Joystick SCV control	Mechanical
Auxiliary hydraulic features
SCV control
Available oil flow at a single rear SCV (200 Type)
Available oil flow at a single rear SCV (450 Type)
Available oil flow at a single rear SCV (450E Type)
Flow Control Valve
Hydraulic Pumps Nominal Flow

Hitch draft control load sense type	Electrohydraulic
Remote control valves available	Standard: Two
Hitch category (SAE designation)	Category 2N; convertible to 2 & 1
Maximum lift capacity behind lift points	1390 kg 3604 lb
Lift capacity at standard frame
Sensing type	Top link
Rear axle differential lock
Maximum Lift Capacity (SAE J283)
Maximum lift capacity directly at coupling points
Maximum lift capacity at coupling points
Rear Hitch Category (ISO 730-2009)
Rear hitch lift capacity (SAE designation)
Throughout lift capacity, 610 mm behind the coupling points

Drawbar category
Maximum vertical load	Road/field use (short position): 1120 kg 2470 lb Field use (fully extended): 760 kg 1675 lb

Type	Standard: 540/540E
Engine rpm (at rated PTO speeds)	540 at 2100 rpm 540E at 1588 rpm
Economy PTO speeds
Reverse PTO speeds
Multispeed PTO option availability
Ground speed PTO option availability
PTO actuation	Electrohydraulic
E-PTO (Economy Rear Power Take-Off)
Engine rpm at rated PTO speeds (540/1.000)
Engine rpm at rated PTO speeds (540/540E/1.000)
Engine rpm at rated PTO speeds (540E/1000/1.000E)

Category
Electric power
Standard lift capacity
Front power take-off (PTO)
PTO speed

Type	Flange
Final drive type	Planetary
Differential controls	Mechanical (pedal)
Axle type
Brakes, type and control	Hydraulic wet disc
Rear differential lock
Load rating

Type	Mechanical Front Wheel Drive (MFWD)
Front axle differential lock
Load rating
Seal Type

Rear	14.9-24 In. 8PR R1 Bias
Wheel tread range
Turning radius with brakes	3.2 m 10.5 ft
Turning radius without brakes	4.65 m 15.3 ft
Central Tire Inflation System (CTIS)
Front

Tread spacing
Drive type
Track width
Mid-rollers

Primary brake (foot brake)
Secondary brake
Park lock
MFWD braking
Front axle brakes
Auxiliary brakes
Hydraulic trailer brakes
Pneumatic trailer brakes

Alternator size	OOS: 70 amp Cab: 110 amp
Battery options	12 V
Working lights	Standard: Halogen Optional: LED
Type of bulb in headlight (Halogen, Zenon, LED)	Standard: Halogen Optional: LED
Type of bulb in beacon (Halogen, Zenon, LED)	Kit: LED
dB(A) rating for backup alarm
Total cold cranking amps
Lighting Type

Rollover protective structure, OOS	Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor, on the side
Seat	Standard: Mechanical Optional for Cab: Air Ride
Cab suspension
Instructional seat	Not Available
Display	Simple automotive-style instrument cluster
Radio	Optional
Inner cab volume
dB(A) rating	82 dBA
Cab glass area
Safety glass rating
Front visibility
CAB Type
Roll-Over Protective Structure (ROPS)
Seat / Suspension

Wheelbase	1950 mm 76.77 in.
Overall width
Overall length	3639 mm 143.3 in.
Overall height
Drawbar clearance
Front axle center
Approximate shipping weight, Open;Cab	OOS: 2735 kg 6029 lb Cab: 3090 kg 6812 lb
Approximate Shipping Weight
Turning radius without brakes

Base machine weight
Maximum ballast level
Maximum permissible weight
Approximate Shipping Weight
Maximum Ballast

Crankcase oil volume
Fuel tank	66 L 17.43 U.S. gal.
Diesel exhaust fluid (DEF) tank	Not Applicable
Cooling system
Transmission-hydraulic system

Interval for engine oil change
Interval for hydraulic/transmission oil change
Interval for engine coolant change

Loader
Lift capacity at full height
Maximum lift height
Leveling type

Guidance	Optional: AutoTrac™ Universal Ready
Telematic	JDLink™ Modem
Remote diagnostics
Auto Pilot
Connectivity
Monitor
Receiver

AutoTrac ready	Optional for cab models
ISOBUS ready	No
CommandCenter video inputs
Immobilizer
Side slope rating
Uphill/downhill slope rating
Country of manufacture	Saltillo, Mexico

Date collected	6-Jan-2023
