New 5090EN Tractor

Specifications

Compare >>> Select up to 2 models to compare specifications

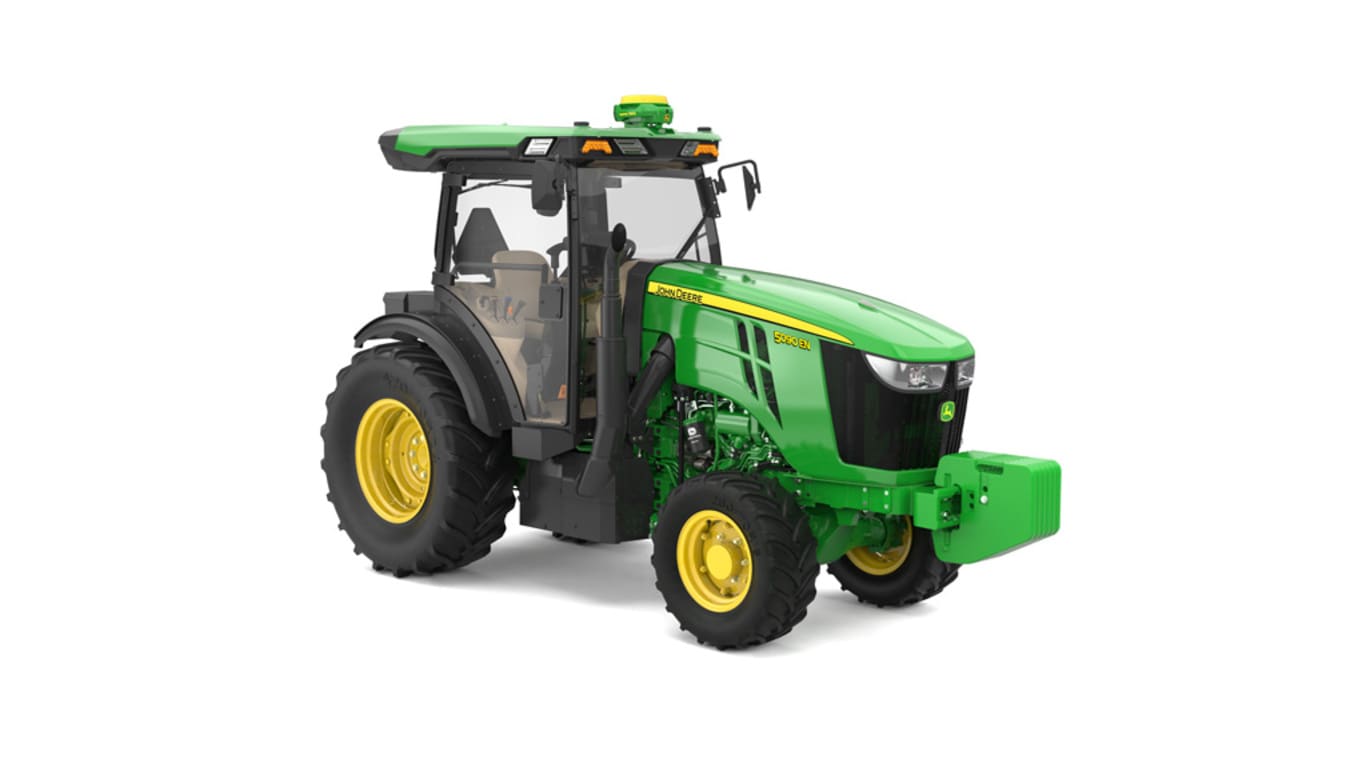

John Deere5090EN Tractor

Add Model --Please Select-- 5050E (Model year 2024) 5060E (Model year 2024) 5067E (Model year 2024) 5075E (Model year 2024) 5075EN (Model year 2024) 5075GL (Model year 2024) 5075GN (Model year 2024) 5075GV (Model year 2024) 5075M (Model year 2024) 5090EL (Model year 2024) 5090GN (Model year 2024) 5090GV (Model year 2024) 5095M (Model year 2024) 5100E (Model year 2024) 5100GN (Model year 2024) 5105M (Model year 2024) 5105MH (Model year 2024) 5105ML (Model year 2024) 5120M (Model year 2024) 5120ML (Model year 2024) 5130M (Model year 2024)

Add Model --Please Select-- 5050E (Model year 2024) 5060E (Model year 2024) 5067E (Model year 2024) 5075E (Model year 2024) 5075EN (Model year 2024) 5075GL (Model year 2024) 5075GN (Model year 2024) 5075GV (Model year 2024) 5075M (Model year 2024) 5090EL (Model year 2024) 5090GN (Model year 2024) 5090GV (Model year 2024) 5095M (Model year 2024) 5100E (Model year 2024) 5100GN (Model year 2024) 5105M (Model year 2024) 5105MH (Model year 2024) 5105ML (Model year 2024) 5120M (Model year 2024) 5120ML (Model year 2024) 5130M (Model year 2024)

Engine description	John Deere PowerTech™ 4045 PWL
Engine displacement	4 cylinders: 4.5 L 276 cu in.
Rated engine power	At 2400 rpm: 67.1 kW 90 hp
Maximum engine power	68.6 kW 92 hp
Rated PTO power (hp SAE)	At 2400 rpm: 56.0 kW 75 hp
Maximum PTO power
Transmission type	Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ Hi-Lo 24F/12R
Hydraulic pump rated output	85.1 L/min 22.5 gpm
Rear hitch category (SAE designation)	Category 2
Base machine weight
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Description	John Deere PowerTech 4045 PWL
Engine type	4045HLV76
Engine family	NJDXL04.5315
Rated speed	2400 rpm
Aspiration	Turbocharged and Aftercooled
Cylinders liners	Wet sleeved
Emission level	Final Tier 4
After treatment type	DOC/SCR
Displacement	4 cylinders: 4.5 L 276 cu in.

Rated power	At 2400 rpm: 67.1 kW 90 hp
Rated PTO power (hp SAE)	At 2400 rpm: 56.0 kW 75 hp
Maximum PTO power
Intelligent Power Management (IPM)
Power boost	At 2200 rpm: 2 percent
Maximum engine power	68.6 kW 92 hp
Engine peak torque	At 1600 rpm: 347 Nm 255 lb-ft
Drawbar power
PTO torque rise
Fuel injection system and control
Air cleaner type
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628)
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628)

Type	Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ Hi-Lo 24F/12R
Reverser	Yes
Clutch; wet/dry	Wet
Creeper	Not available

Type	Open center
Pump rated output	85.1 L/min 22.5 gpm
Available flow at a single rear SCV	60.1 L/min 15.9 gpm
Available flow at front SCVs
Number of rear selective control valves (SCVs)	Standard: Two Optional: Three
Number of mid selective control valves (SCVs)	Standard: Zero Optional: Up to Three
Number of front selective control valves (SCVs)
Joystick SCV control	Mechanical
Auxiliary hydraulic features
SCV control

Hitch draft control load sense type	Mechanical
Remote control valves available	Standard: Two Optional: Three
Hitch category (SAE designation)	Category 2; convertible to 1
Maximum lift capacity behind lift points	Standard: 2100 kg 4600 lb
Lift capacity at standard frame
Sensing type	Top link
Rear axle differential lock

Drawbar category	Category 2
Maximum vertical load	Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg

Type	Standard: 540/540E Optional: 540/1000
Engine rpm (at rated PTO speeds)	540 at 2400 rpm 540E at 1716 rpm 1000 at 2400 rpm
Economy PTO speeds
Reverse PTO speeds
Multispeed PTO option availability
Ground speed PTO option availability
PTO actuation	Electrohydraulic

Category
Electric power
Standard lift capacity
Front power take-off (PTO)
PTO speed

Type	Flange
Final drive type	Inboard planetary
Differential controls	Mechanical (pedal)
Axle type
Brakes, type and control	Hydraulic wet disc
Rear differential lock
Load rating

Type	Mechanical Front Wheel Drive (MFWD)
Front axle differential lock
Load rating

Rear	MFWD: 18.4-30 R1 Bias
Wheel tread range	MFWD: front: 1340-1904 mm 52.8-75.0 in.
Turning radius with brakes	MFWD: 4.36 m 14.3 ft
Turning radius without brakes	MFWD: 3.54 m 11.6 ft
Central Tire Inflation System (CTIS)
Front

Tread spacing
Drive type
Track width
Mid-rollers

Primary brake (foot brake)
Secondary brake
Park lock
MFWD braking
Front axle brakes
Auxiliary brakes
Hydraulic trailer brakes
Pneumatic trailer brakes

Alternator size	OOS: 90 amp Cab: 120 amp
Battery options	12 V
Working lights	Halogen
Type of bulb in headlight (Halogen, Zenon, LED)	Halogen
Type of bulb in beacon (Halogen, Zenon, LED)	Kit: Halogen
dB(A) rating for backup alarm
Total cold cranking amps

Rollover protective structure, OOS	Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor
Seat	Standard: Mechanical Optional for Cab: Air Ride
Cab suspension
Instructional seat	Optional for Standard cab Included with Premium cab
Display	Automotive-style light-emitting diode (LED) instrument cluster
Radio
Inner cab volume	78 dBA
dB(A) rating
Cab glass area
Safety glass rating
Front visibility

Wheelbase	2350 mm 92.5 in.
Overall width
Overall length	4042 mm 159.13 in.
Overall height
Drawbar clearance
Front axle center
Approximate shipping weight, Open;Cab	OOS: 3300 kg 7275 lb Cab: 3700 kg 8150 lb

Base machine weight
Maximum ballast level
Maximum permissible weight

Crankcase oil volume
Fuel tank	OOS: 94.6 L 25 U.S. gal. Cab: 114 L/min 30 U.S. gal.
Diesel exhaust fluid (DEF) tank	12.0 L 3.17 U.S. gal.
Cooling system
Transmission-hydraulic system

Interval for engine oil change
Interval for hydraulic/transmission oil change
Interval for engine coolant change

Loader
Lift capacity at full height
Maximum lift height
Leveling type

Guidance	No
Telematic	JDLink™
Remote diagnostics

AutoTrac ready	No
ISOBUS ready	No
CommandCenter video inputs
Immobilizer
Side slope rating
Uphill/downhill slope rating
Country of manufacture	Saltillo, Mexico

Date collected	1-Aug-2023
