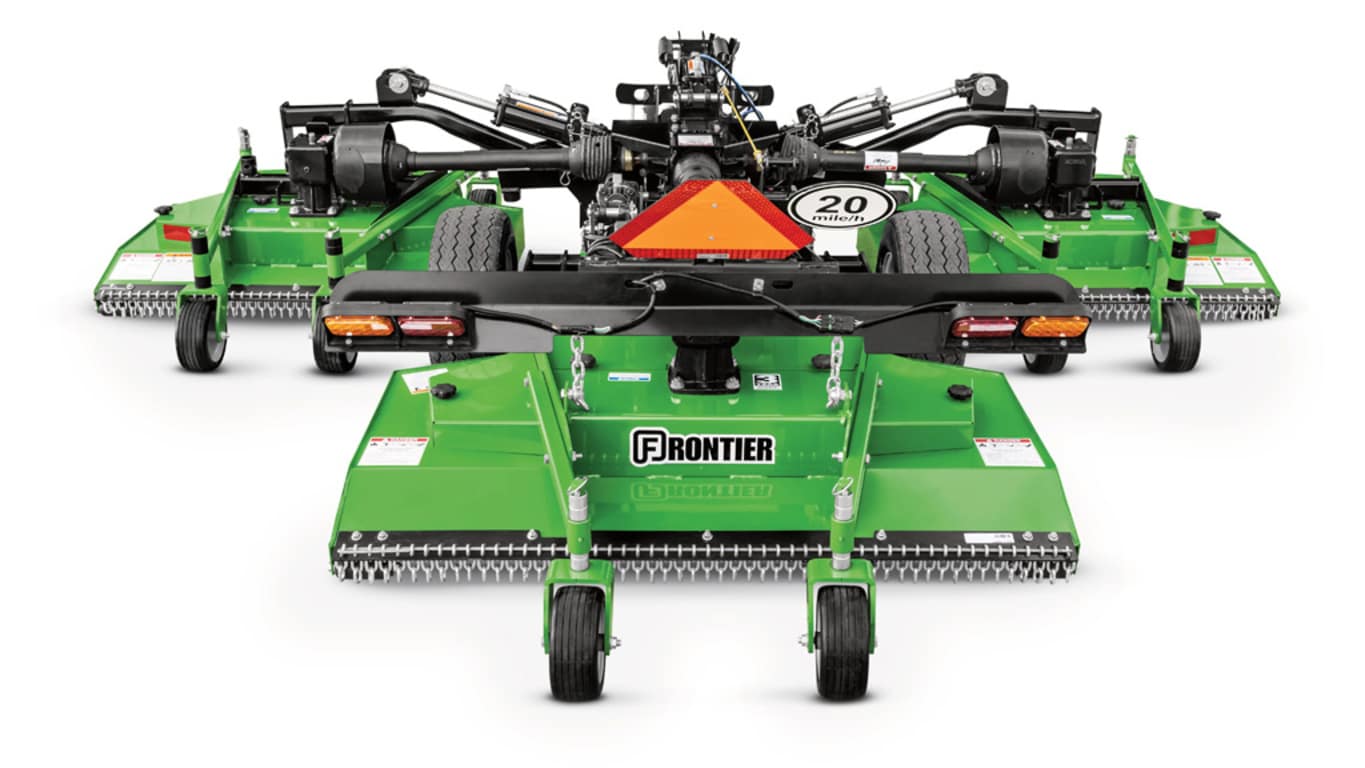

New FM40 Series Flex-Wing Grooming Mower

Specifications

Cutting width - Total	3.65 m 12 ft
Transport width	2.4 m 7.75 ft
Cutting height- Range, in. (cm)	3.8-11.4 cm 1.5-4.5 in.
Deck - Thickness, gauge	10 gauge 3.416 mm 0.1345 in.
Discharge type	Rear
Caster wheels - Type	Solid
Hitch - Adjustment	Self-leveling, multi-position
Hitch - Drawbar	Category 1
Power	18.6-44.7 kW 25-60 hp
PTO speed rpm	540 rpm

Total	3.8 m 12.5 ft
Center deck	1.4 m 4.5 ft
Wing deck	1.4 m 4.5 ft

Transport width	2.4 m 7.75 ft
Overall width	3.8 m 12.583 ft
Transport length	3.2 m 10.5 ft
Max overall length	3.4 m 11.25 ft
Transport height	1.8 m 5.9 ft
Transport Dimensions (LxWxH):
Working Length
Working width

Operating	923.1 kg 2,035 lb
Shipping	950.3 kg 2,095 lb
Operating tongue	145.1 kg 320 lb
Transport tongue	231.3 kg 510 lb

Power	18.6-44.7 kW 25-60 hp
PTO speed rpm	540 rpm
Engine HP Requirements
PTO hp Range

Ratio	1-to-2.5
Splitter gearbox	74.6 kW 100 hp
Mower deck gearbox	26.1 kW 35 hp

Type	Gearbox over V-belt
Wing driveline	Category 3
Input driveline	Category 3 CV

Drawbar	Category 1
Clevis	Floating
Adjustment	Self-leveling, multi-position
Category (Drawbar)
Type
iMatch / Quick hitch

Thickness, gauge	10 gauge 3.416 mm 0.1345 in.
Overlap	15.2 cm 6 in.
Lift cylinders	7.6x25.4 cm 3x10 in.
Wing travel, degrees	Up 20 degree (angle) and down 15 degree (angle)
Discharge type	Rear

Range, in. (cm)	2.5-11.4 cm 1-4.5 in.
Adjustment

Average tip speed	4,938 m/min 16,200 fpm
Spindle quantity	Nine
Spindle type	Cast iron
Spindle bearings	Greaseable ball
Overlap	3.8 cm 1.5 in.
Dimensions, type 1	0.6x6.4 cm 0.25x2.5 in.
Composition	Heat-treated alloy steel
Blade Spindles
Blade Tip Speed
Dimensions, type 2
Number of Blades

Transport	(2) 20X8-10
Transport Wheels

Quantity	10
Type	Solid
Size	25.4x10.2 cm 10x4 in.
Bearings	Powder metal bushing

Front	Standard
Front and Rear Anti-Scalping Roller

Pounds per square inch (kg per square centimeter)	5 pounds per square inch

Adjustment	Spring-loaded idler
Adjustments: Spring-loaded idler
Type

Mainframe	10.2 cm 4 in.

Transport lights	Standard
Rear chain shields	Standard
Auto-engage transport latch	Standard
Markings	Slow-moving vehicle
Hydraulic Wing Latch Release Kit

Labor hours	1.25

Machine	1 year
Gearbox	1 year
Spindle
